Pneumatic Rotary Actuator

Name: Pneumatic Rotary Actuator
Brand: UFLOW AUTOMATION
Price: 6500 INR
Availability: InStock

6500 INR/Piece

Get a Price/Quote

Product Details:

Media AIR
Structure Stranded
Material Aluminum
Size 32MM TO 150MM
Air Consumption As Per Application
Product Type pneumatic actuator
Maximum Torque 77 NM @ 6 Bar N-m
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pneumatic Rotary Actuator Price And Quantity

Price 6500 INR/Piece
Minimum Order Quantity 500 Piece

Pneumatic Rotary Actuator Product Specifications

Air Consumption As Per Application
Maximum Torque 77 NM @ 6 Bar N-m
Structure Stranded
Material Aluminum
Size 32MM TO 150MM
Color Yellow
Product Type pneumatic actuator
Media AIR

Pneumatic Rotary Actuator Trade Information

FOB Port Rajkot
Supply Ability 5000 Piece Per Week
Delivery Time 2 Week
Main Export Market(s) Western Europe, Middle East, Eastern Europe, Africa, Asia, Australia, North America, South America, Central America
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

Pneumatic Rotary Actuator Specifications

Type	Single Acting Rotary Pneumatic Actuator
Movement	Rotary
Technology	Rack & Penion Single Acting
Body Material	Hard Anodized Alluminum
Internal Seals	NBR (Nitrile)
Rotation	90
Torque Min	Min. 22 NM @ 4 bar
Torque Max	Max. 77 NM @ 6 Bar
Max. Working Pressure	6 bar
Air consumption	450 ml/Bar
Standard	ISO 5211
Feature	Wear proof aluminium free Rack & Pinion design, Providing a hard-anodized body for high corrosion
Life Span	Smooth travelling stroke for extending the life of ball valve sheet.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pneumatic Actuator' category

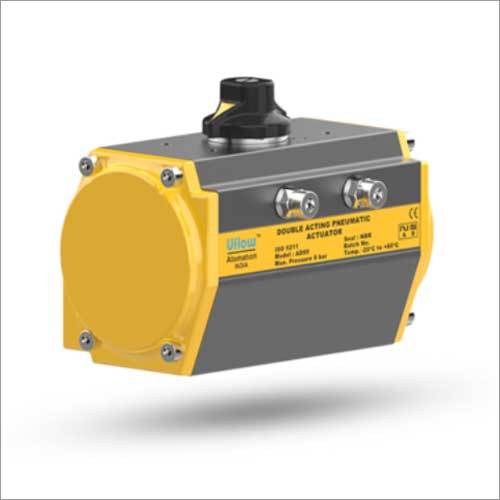

Double Acting Actuator Price : 2000 INR/Piece Minimum Order Quantity : 1000 Color : Yellow Product Type : pneumatic actuator Size : 32MM TO 150MM Material : Aluminum Air Consumption : As Per Application Media : AIR Maximum Torque : Max. 444.50 NM @ 7 Bar Nm Structure : Stranded

Send Inquiry

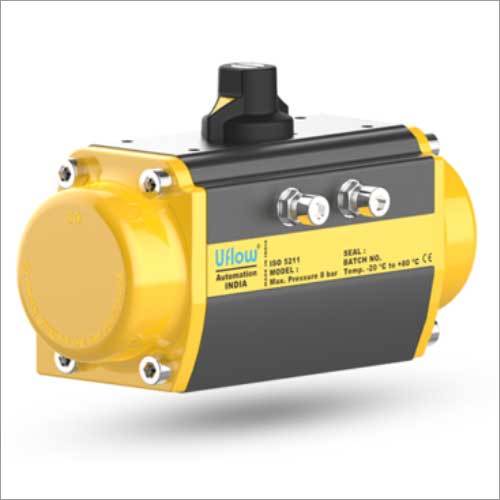

Pneumatic Valve Actuator Price : 2000 INR/Piece Minimum Order Quantity : 1000 Color : Yellow Product Type : pneumatic valve actuator Size : 32MM TO 150MM Material : Aluminum Air Consumption : As Per Application Media : AIR Maximum Torque : Max. 444.50 NM @ 7 Bar Nm Structure : Stranded

Send Inquiry

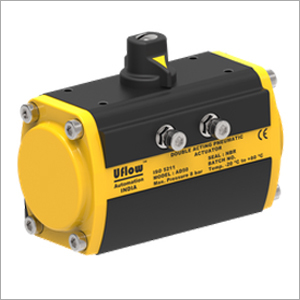

Double Acting Pneumatic Actuator Price : 8500 INR/Piece Minimum Order Quantity : 1000 Color : Black, Yellow Product Type : Double Acting Pneumatic Actuator Size : 32, 50, 63, 80, 100 Material : Aluminium Air Consumption : 780 ml/Bar Media : AIR Maximum Torque : Min. 110 NM @ 3 bar Nm Weight : 1.5 Kilograms (kg)

Send Inquiry

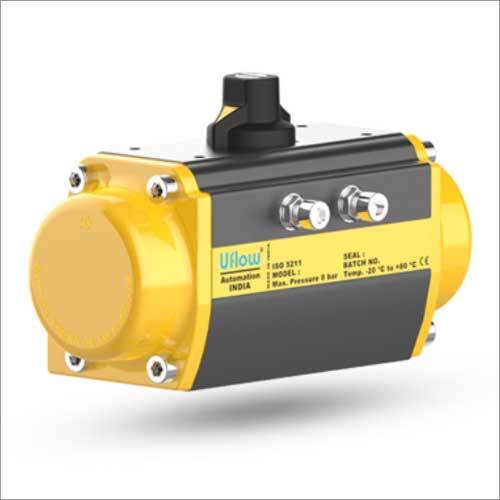

Single Acting Actuator Price : 2500 INR/Piece Minimum Order Quantity : 1000 Color : Yellow Product Type : single acting actuator Size : 32MM TO 150MM Material : Aluminum Air Consumption : As Per Application Media : AIR Maximum Torque : Max. 180 NM @ 6 Bar Nm Structure : Stranded
