3/2 Push Pull Valve

Name: 3/2 Push Pull Valve
Brand: UFLOW AUTOMATION
Price: 2500 INR
Availability: InStock

2500 INR/Piece

Get a Price/Quote

Product Details:

Type Other
Material Aluminum
Size In/Out/Exhaust - 1/4 Inch BSP
Power Manual
Product Type Direction Control Valve (Manual)
Pressure Medium Pressure
Temperature Medium Temperature
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3/2 Push Pull Valve Price And Quantity

Price 2500 INR/Piece
Minimum Order Quantity 1000 Piece

3/2 Push Pull Valve Product Specifications

Type Other
Size In/Out/Exhaust - 1/4 Inch BSP
Material Aluminum
Power Manual
Working Presssure Medium Pressure
Pressure Medium Pressure
Product Type Direction Control Valve (Manual)
Weight 500 Grams (g)
Media Other
Temperature Medium Temperature
Thread Type BSP
Port Size In/Out/Exhaust - 1/4 Inch BSP
Color Silver, Black

3/2 Push Pull Valve Trade Information

FOB Port Mumbai
Supply Ability 1000 Piece Per Week
Delivery Time 1 Week
Main Export Market(s) Middle East, Asia, Africa, Central America, Western Europe, Australia, North America, South America, Eastern Europe
Main Domestic Market All India
Certifications ISO 9001 : 2015 ERDA IP68 Weather Proof coil Enclosure CIMFR IP67 Flame proof coil Enclosure PESO IP67 Explosion proof Coil Enclosure Exd II GD T6

Product Description

We are acknowledged in dealing a broad variety of 3/2 Push Pull Valve. Our clients can avail this valve in various specification as well as custom made solutions. This valve is mainly used to operate the pneumatic cylinders. It is easy to replace by a knob and control the speed of the spool in side the required valve. 3/2 Push Pull Valve gives a better flow as compare to other multipurpose valves. It is available in cost effective prices.

Features

Cartridge Type design for Long life
Compact design
Lubrication not essential
Mounts in any position
The head can rotate 180
20 Lacs Cycle tested
Panel and Manifold Mounting

3/2 Push Pull Valve Specifications

Model No:	PTA1, PTA1Z, PTA1D
Type:	3X2
Design:	Spool with Cartridge Type
Port Size:	In/Out/Exhaust - 1/4 BSP
Medium:	Compressed Air, Filtered & Lubricated
Working Pressure Range:	0 - 10 bar
Ambient/Medium Temperature:	5 - 60 C
Flow:	1200 lpm
Materials of Construction:	Aluminium, Nitrile, Brass, Polymer

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pneumatic Valves' category

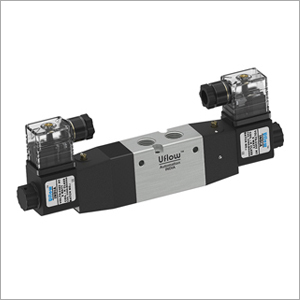

5/3 Double Solenoid Valve With Spring Center Price : 2500 INR/Piece Minimum Order Quantity : 1000 Material : Aluminum Size : In/Out 1/4 Inch BSP & Exhaust 1/8 Inch BSP Power : Solenoid Media : Other Port Size : In/Out 1/4 Inch BSP & Exhaust 1/8 Inch BSP Temperature : Medium Temperature Working Presssure : Medium Pressure Pressure : Medium Pressure Product Type : Direction Control Valve (Solenoid) Type : Other Color : Silver, Black Thread Type : BSP Weight : 500 Grams (g)

Send Inquiry

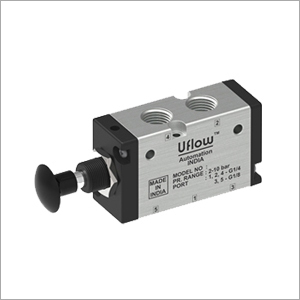

5/2 Push Pull Valve Price : 6800 INR/Piece Minimum Order Quantity : 1000 Material : Aluminum Size : In/Out/Exhaust 1/4 Inch BSP Power : Manual Media : Other Port Size : In/Out/Exhaust 1/4 Inch BSP Temperature : Medium Temperature Working Presssure : Medium Pressure Pressure : Medium Pressure Product Type : Direction Control Valve (Manual) Type : Other Color : Silver, Black Thread Type : BSP Weight : 500 Grams (g)

Send Inquiry

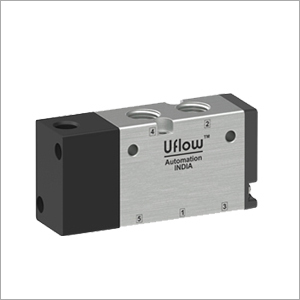

5/2 Single External Pilot Operated Valve With Spring Return Price : 7500 INR/Piece Minimum Order Quantity : 1000 Material : Aluminum Size : In/Out 1/4 Inch BSP & Exhaust/Pilot Port 1/8 Inch BSP Power : Other Media : Other Port Size : In/Out 1/4 Inch BSP & Exhaust/Pilot Port 1/8 Inch BSP Temperature : Medium Temperature Working Presssure : Medium Pressure Pressure : Medium Pressure Product Type : Direction Control Valve (Pilot) Type : Pilot Color : Silver, Black Thread Type : BSP Weight : 500 Grams (g)

Send Inquiry

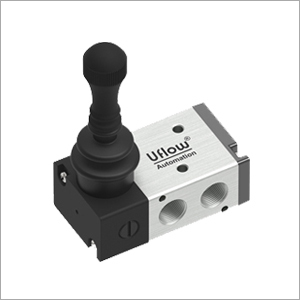

3/2 Hand Lever Valve Price : 1500 INR/Piece Minimum Order Quantity : 1000 Material : Aluminum Size : In/Out/Exhaust 1/4 Inch BSP Power : Manual Media : Other Port Size : In/Out/Exhaust 1/4 Inch BSP Temperature : Medium Temperature Working Presssure : Medium Pressure Pressure : Medium Pressure Product Type : Direction Control Valve (Manual) Type : Other Color : Silver, Black Thread Type : BSP Weight : 500 Grams (g)
